Building blocks for high-performance autonomous systems

BRAIN

BRAIN X2

Flight control & edge AI/ML

The BRAIN X2 includes all of the sensors needed to fly (RTK-GPS, triple-redundant IMUs, Mag, Baro), mesh radio to communicate with the ground and other BRAIN-enabled vehicles, 100 TOPS of AI/ML computing power for planning/computer-vision/signal-processing, FPGA for hard-realtime command & control, all packed into a tiny form factor. Pre-integrated with FLEX flight-software and simulation framework.

This high-performance compute & sensor package is pre-integrated with FLEX flight-software and simulation, enabling a new vehicle concepts to be proven out in simulation and quickly transitioned to real-world.

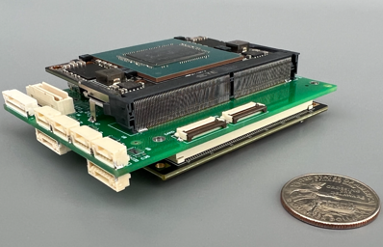

GuideTech's BRAIN X2 flight computer includes all the sensors needed for flight, a dedicated flight control computer and AI enable Nvidia Jetson Orin NX for computer vision and autonomy.

BRAIN X1

Flight control avionics

BRAIN X1: a sophisticated GNC avionics stack. The X1 is more than just a product—it's a versatile tool that empowers us to rapidly design, test, and deploy custom vehicles and integrated systems without breaking the bank.

A quick look under the hood shows a modern Zync SoC, tightly coupled GPS/INS, redundant GNC sensors, and FPGA for I/O flexibility and precision timing for hard real-time high performance.

BRAIN X1 comes pre-integrated with FLEX embedded software and harnesses GuideTech's comprehensive algorithm library, aligning with our mission to accelerate high-performance flight endeavors.

GuideTech's BRAIN X1 flight computer includes all the sensors need for flight and a high performance FPGA with dual arm cores, for precision Guidance, Navigation & Controls.

Embedded Software

FLEX Embedded

Modular flight-software & firmware framework that simplifies development

The FLEX Embedded framework is a modular, hard real-time and extensible infrastructure that hosts our software components and interfaces with sensors & actuators. Its modular nature allows for re-use of proven algorithms and drivers while easily incorporating new algorithms/drivers for new vehicle or mission specific needs. Efficient publish-subscribe messaging between software components simplifies interfaces and promotes modularity. Firmware enables hard real-time determinism, high update rates and low jitter. FLEX Embedded eases the path to DO-178C and other stringent safety certifications.

Close-up of a circuit board with binary code display

Simulation

FLEX Simulation

Rich Model Library, Easy to Configure, HWIL-Ready

The FLEX simulation framework includes a rich model library, which means most vehicles can be simulated by simply tailoring our existing models’ parameters. FLEX is used to model everything from multi-rotors and fixed-wing sUAS, to unmanned fighters, hypersonic vehicles and a wide variety of missiles and interceptors. FLEX Sim is based on FLEX Embedded and enables software-in-sim development from day 1 of a program. High-Fidelity GPS/INS, Flexible body effects, slosh, actuator, landing gear and other models enable accurate subsystem requirements to be derived from monte carlo analysis. FLEX is easy to extend: scaffolding code for models is autogenerated, so the developer can focus on the math model and not worry about signal routing, parameter routing, etc. FLEX executes extremely quickly, ensuring that large scale monte carlo analysis can be done regularly and efficiently.

Because FLEX includes the true flight software within the simulation, transition to hardware-in-the-loop is simplified. FLEX’s existing HWIL and CIL capabilities greatly simplify and expedite integration and test with BRAIN and other flight computers.

GuideTech's high fidelity 6DOF Simulation is often used to evaluate landing algorithms, mechanical design, and overall landing performance.

Advanced Algorithms

Guidance, Navigation & Control

Proven algorithms for precise control of unmanned systems.

GuideTech has developed a library of algorithms that enable precision GNC for a wide variety of vehicles. We have GNC algorithms for launch vehicles, missiles, re-entry vehicles, unmanned fighters, loitering munitions and small fixed-wing and rotary-wing UAS. Our target state estimators can derive accurate 3D target locations from noisy passive-only sensor data. Our Guidance library includes predictor/corrector reentry vehicle guidance, precision landing guidance, flexible UAS planning guidance, and missile terminal guidance laws. Our EIGEN autopilot enables high performance control of rotary wing, fixed wing and launch vehicles. GuideTech’s navigation library includes tightly-coupled GPS/INS filters and vision aided-nav.

GuideTech has deep experience in missile Guidance, Navigation and Controls as well as Terminal Guidance.

ScavengerNav

Resourceful & Robust Navigation in Denied Environments

GuideTech is developing Scavenger to navigate in denied environments, day and night, with no comms and no GPS. By leveraging a wide range of low-cost sensor inputs, we can dramatically lower the cost of robust A2/AD navigation, all at a low SWAP-C.

Performance Tracking

REVEAL

Meaning From Data

REVEAL allows teams to track performance across a wide mission/scenario set and correlate performance changes with code changes. REVEAL provides both a high-level view of KPPs and enables the user to drill down into subsets of simulation results, with detailed time-history and 3D visualization. The insights provided by REVEAL give clear understanding of system performance and enable better design decisions.

GuideTech's REVEAL evaluates and analyzes system performance, providing our developers key insights that allow them to move faster and achieve high performance across the full envelope and mission set.
